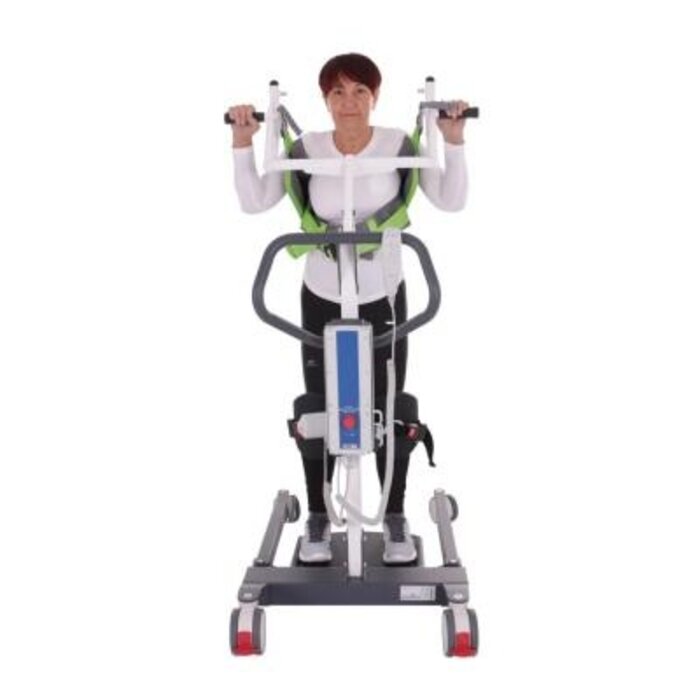

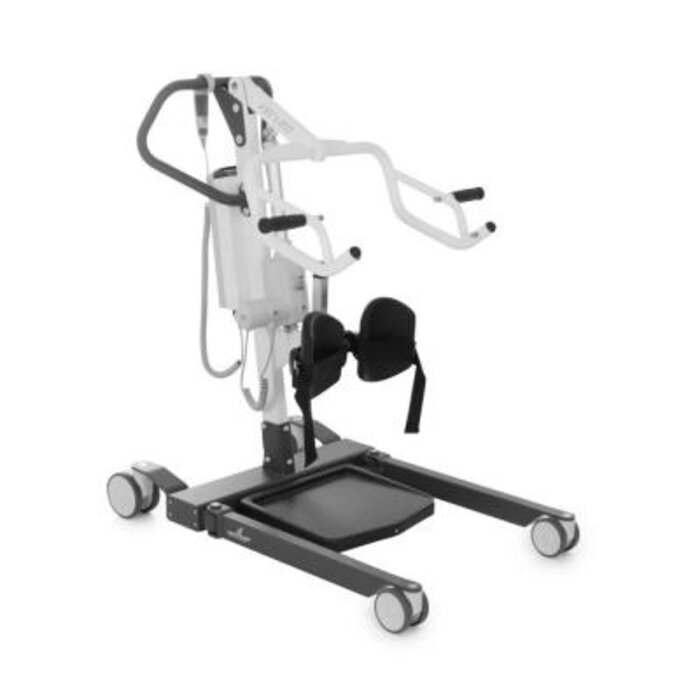

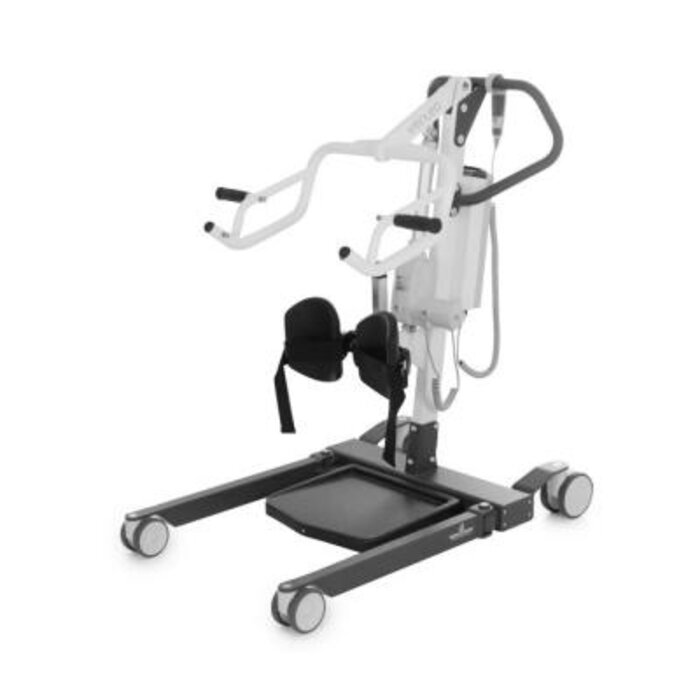

Active lifting device Meden Verteo, 230 kg

• The Verteo sit-to-stand lift makes it easy to lift, transport and stand up patients with disabilities or limited mobility.
• The lift stabilizes individual parts of the patient's body and by changing the angle of the lifting arm, the patient can be lifted gradually. By adjusting the angle of the lifting arm, the operator can easily determine a specific position in which the patient can remain for up to several hours. The Verteo effectively assists the patient in performing everyday activities, such as getting in and out of bed or a chair, going to the toilet, using transport, etc. The Verteo is recommended for use in medical institutions, sanatoriums, retirement homes and other care facilities.
• Characteristics:
- Can be used in small spaces
- Includes stabilization straps for lower legs
- Emergency lowering function
- Maximum safety and comfort
- Overload protection
- Very easy to maneuver
- Relieves the driver's spine during handling and manipulation
- Adjustable and removable footrest
- Maintenance indicator
- Thanks to the folding legs it fits under a chair, wheelchair or toilet
- Use of high quality electrical components
- Ergonomic solutions: different grip points, leg rests angled towards the footrest.
• Advantages :
- Adjustable distance between the legs
- 360° swivel castors with brakes
- Leg rests secured with straps
- Stable, removable footrest
• Technical data:
- Electrical adjustment of the distance between the base (legs)
- Maximum load: 230 kg
- Length: 108 cm
- Width: 75 cm
- Height: 113 cm
- Lifting height range: 78-174 cm
- Footrest height: 9 cm
- Height of shin guards when mounted downwards: min 39 cm - max 52 cm
- Shin guard height mounted upwards: min 53 cm - max 66 cm
- Footrest width min: 51/66 cm
- Max base width: 101/115 cm
- Lower leg height: 11.5 cm
- Wheel diameter (without brake / with brake): 10 / 12.5 cm
- Weight: 60 kg
- Battery capacity: 2.9 Ah
- Lifting speed without load: 18 sec
- Descent speed without load: 18 sec
- Max. noise level: 52 dB
- Charger - input voltage: 100-240 V
- Charger frequency: 50/60 Hz
- Medical equipment: MD
