Alternating mattress - multiple sizes available

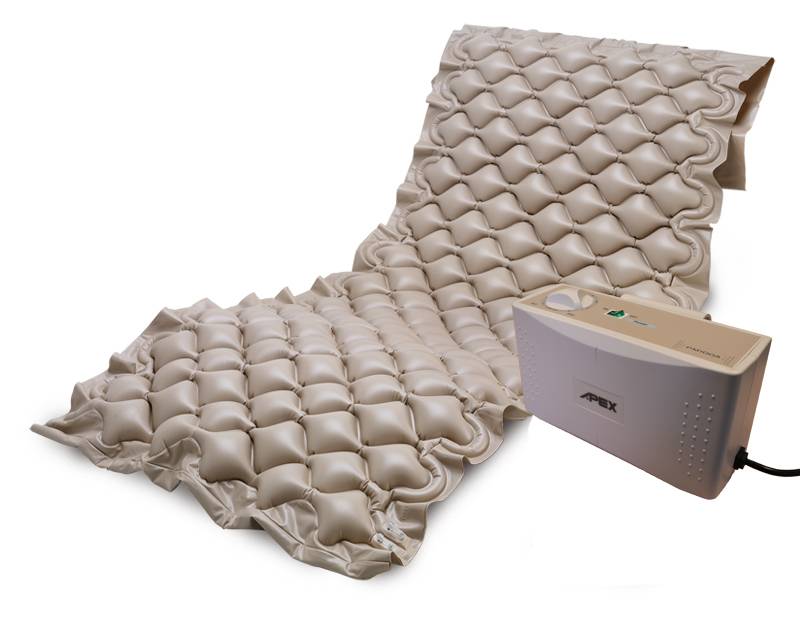

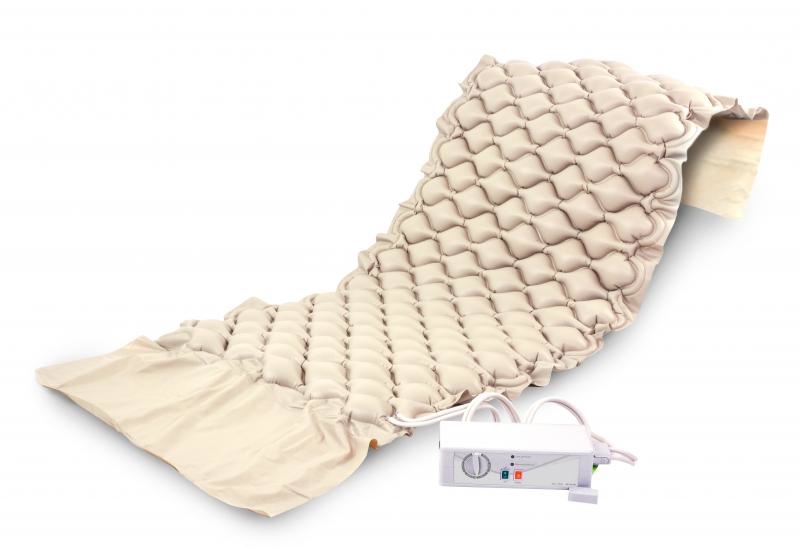

DOMUS 1 - 6 CM (NORMAL TO STAGE 1)

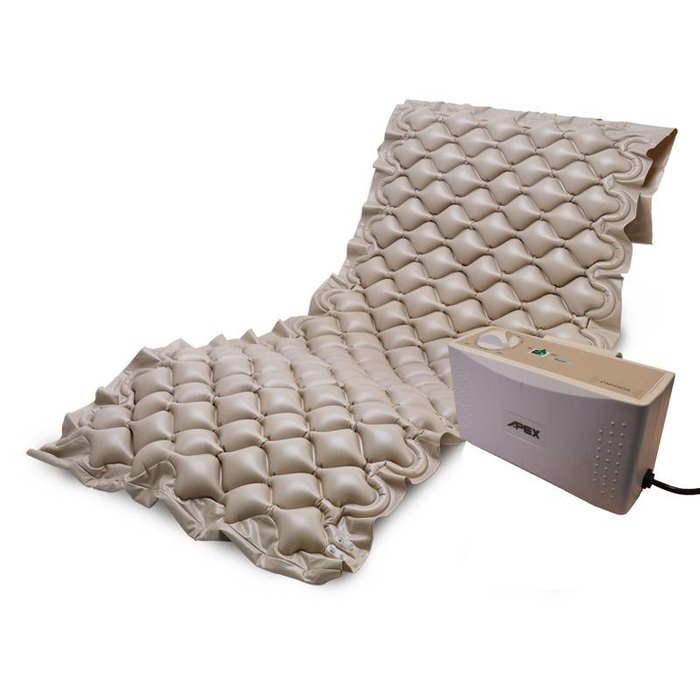

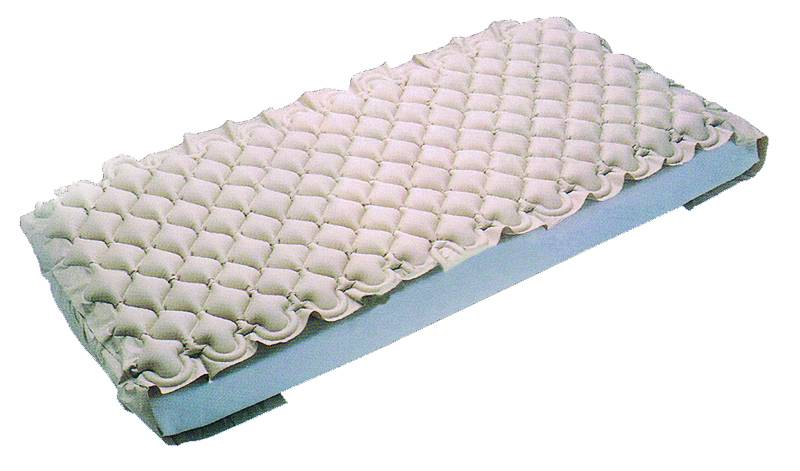

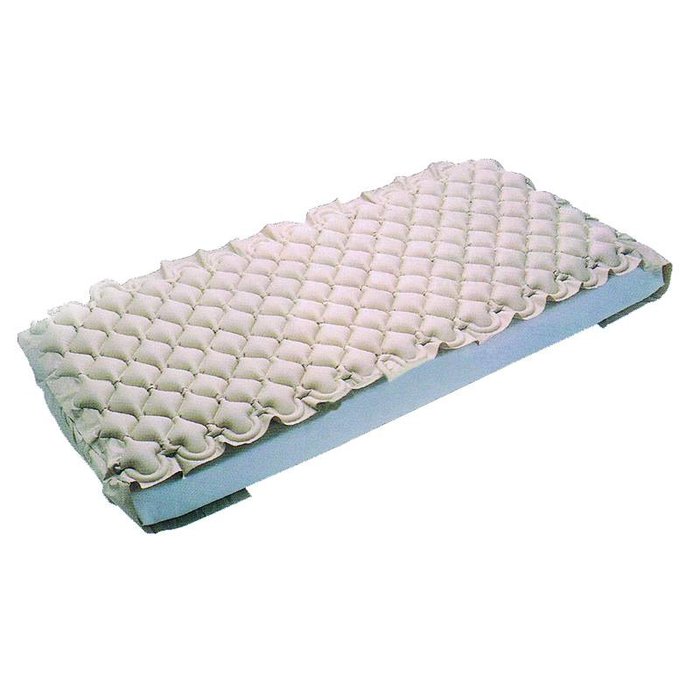

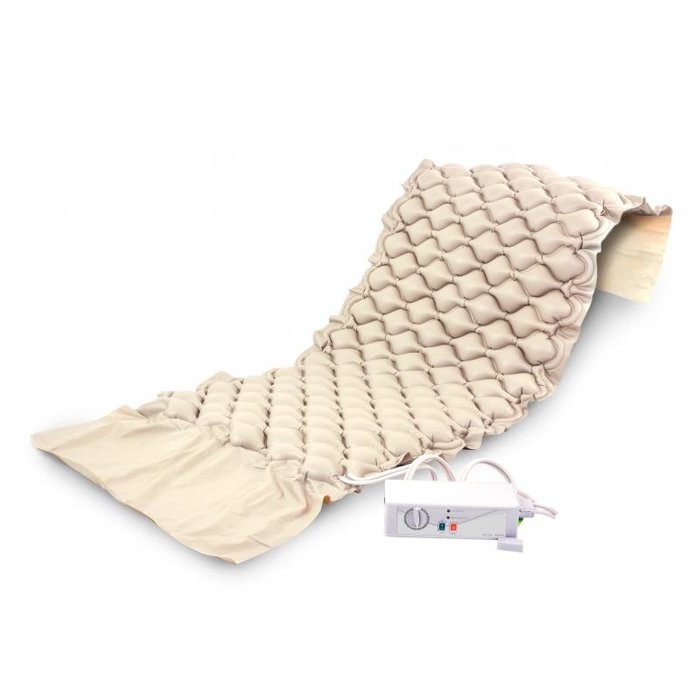

ALTERNATING" OVERMATTRESS DOMUS 1 - FOR STAGES NORMAL TO 1

• Dimensions: 198 x 86 x 6.4 cm.
• With compressor
• Over mattress in PVC (0.3 mm), composed of 130 "spheres" of 6.4 cm high, very comfortable and attached to the bed by means of flaps
• All parts of the mattress are washable.
• The compressor can be attached to the lateral side supports of the bed.
• Maximum patient weight : 110 kg.
• Very easy to install, use and store.
• Cycle time: 6 min
• Airflow: 6-7l/min
• Pressure Range: 20-70mmHg
• Electrical supply: 220-240V
• Low noise, low temperature and limited vibration.
• Adjustable pressure.

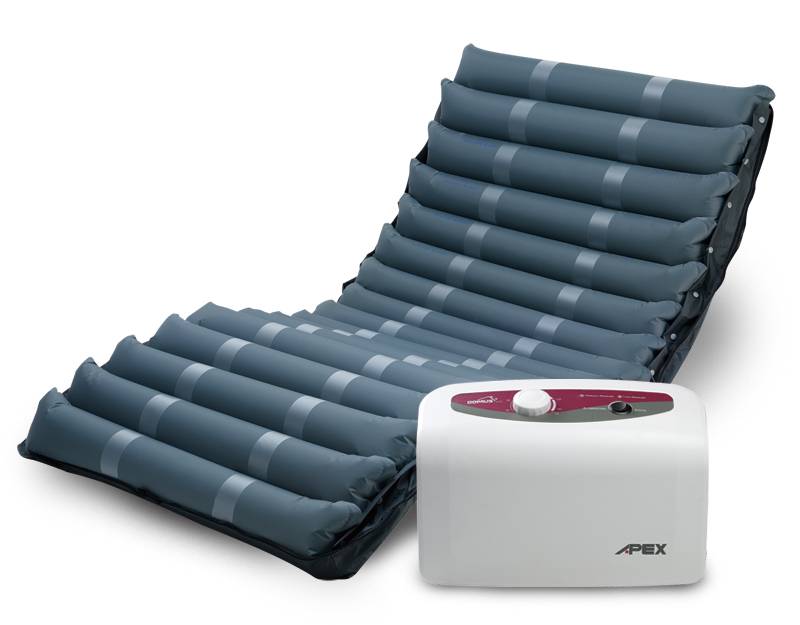

DOMUS 2 PLUS - 10 CM (STAGE 1 TO 2)

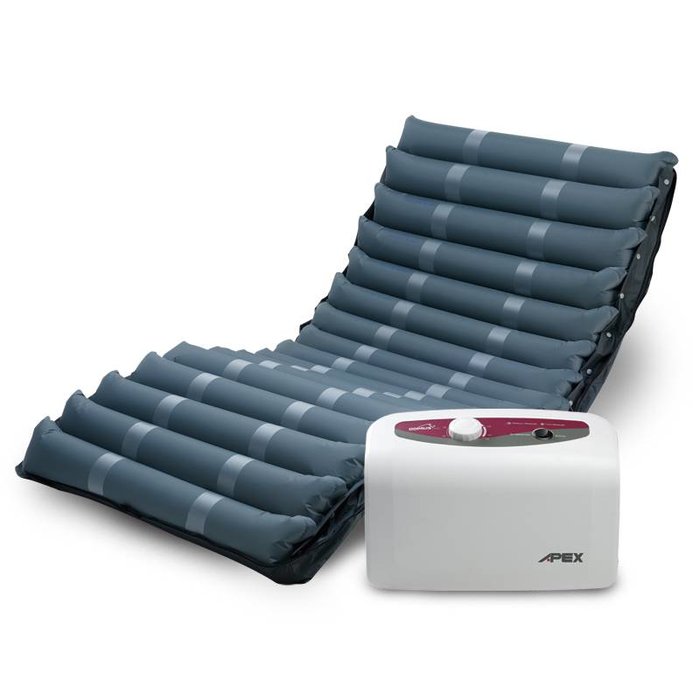

ALTERNATING OVERLAY MATTRESS DOMUS 2 PLUS (STADIUM 1 TO 2)

• Alternating over mattress + compressor with adjustable pressure control.
• 18 10.2 cm air tubes.
• Maximum allowed weight of the patient : 140 kg.
• Dimensions : 200 x 90 x 12.7 cm
• With air ventilation.



DOMUS 3 (replacement product PM100 EVO) - STAGE 1 TO 3

• REF: 118.370

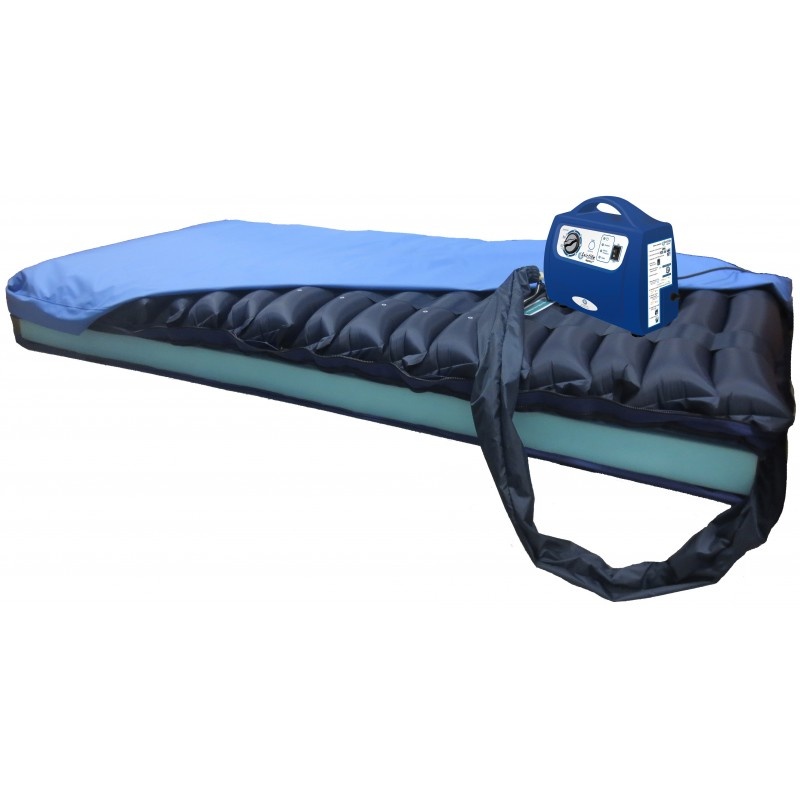

  ALTERNATING MATTRESS PM100 EVO (STAGE 1 TO 3)

  • Dimensions: 200 x 90 x 13 cm (+ 8 cm foam)
  • Compressor with pressure regulation
  • The PM 100A EVO consists of an interchangeable and detachable 13 cm high air mattress overlay on an 8 cm foam base that ensures the presence of a static support for comfort and safety.
  • The air mattress layer is connected to a compressor that blows filtered air with an inflation pressure determined by the setting of the corresponding weight of the patient.
  • The cells are connected to each other and form 2 alternating inflated networks, ie one in two.
  • Alternating cycle: 12 minutes.
  • The set is protected by a removable integral cover that is impermeable to liquids and breathable.
  • The pump is equipped with a visual and audible alarm.
  • Assets:
  - Reduces the support pressure
  - Ensures better blood circulation under the support points
  - Pressure sensor to stop the motor when the pressure is reached
  • Characteristics:
  - Polyurethane 18-cell mattress topper
  - HR foam base of 8 cm high in 37 kg / m3
  - Cover: Cartex
  - EN 597-1 and EN 597-2
  • Care tips:
  - Use a microfiber cloth impregnated with a cleaning agent or a surface disinfectant.





DOMUS 4 - 18 CM (CELLS 13 CM + FOAM 5 CM) - STAGE 1 TO 4

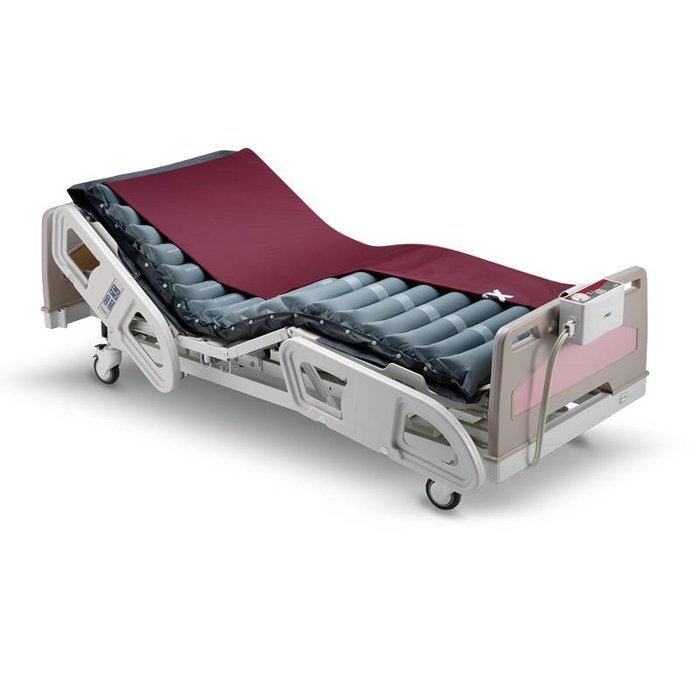

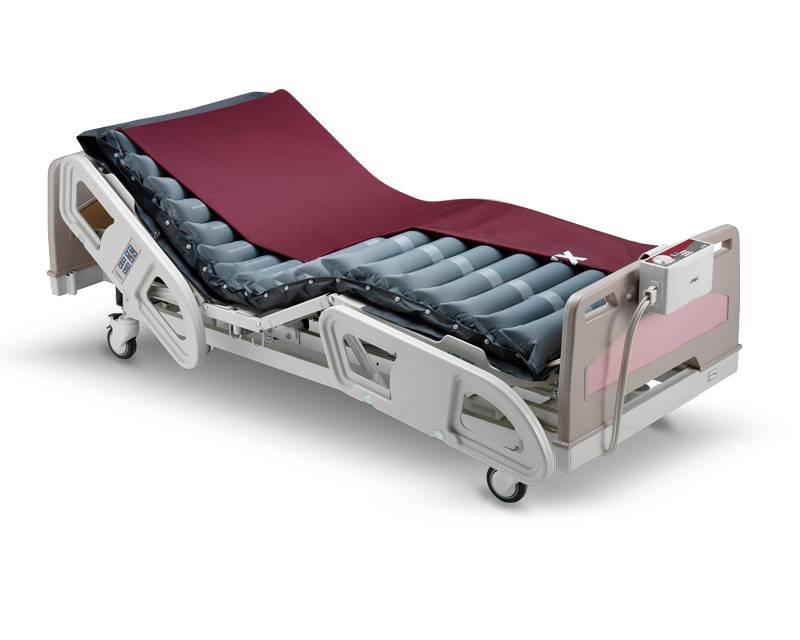

ALTERNATING MATTRESS DOMUS 4 (STAGE 1 TO 4)

• Dimensions : 200 x 85 x 12.7 cm (+ 5 cm of CMHR foam)
• Compressor with pressure regulation,
• Static, alternating and firm operation + chair function (ideal when the bed is in the seat position)
• Digital control of the patient's weight
• Audible alarm in the event of a failure of the air pressure or electrical supply.
• Mattress composed of 17 air elements (in the form of tubes).
• Supplied with 5 cm CMHR 35 foam mattress base.
• With air ventilation.
• Removable cover in Nylon/PU (for cleaning).
• With CPR valve : rapid deflation of the mattress for e.g. cardiac resuscitation.
• Maximum capacity : 180 kg
• Weight of the item : 7.8 kg
• Supplied with a transport bag
