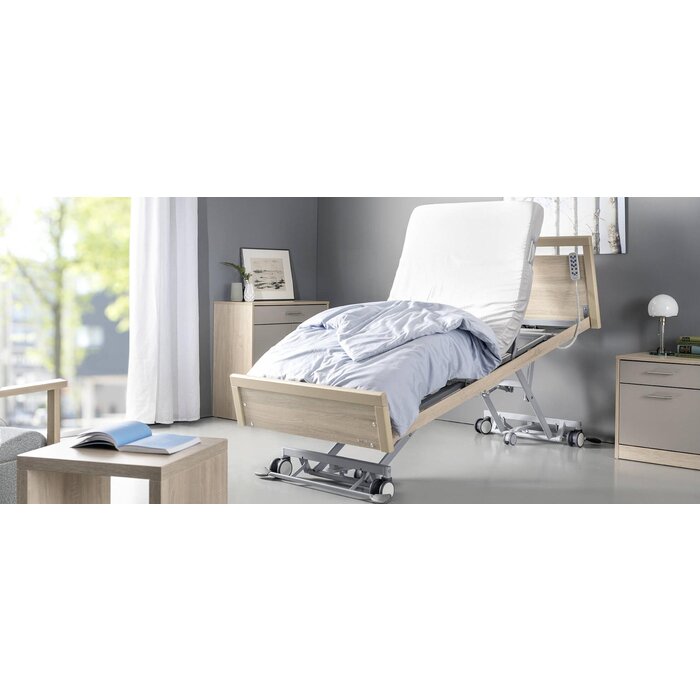

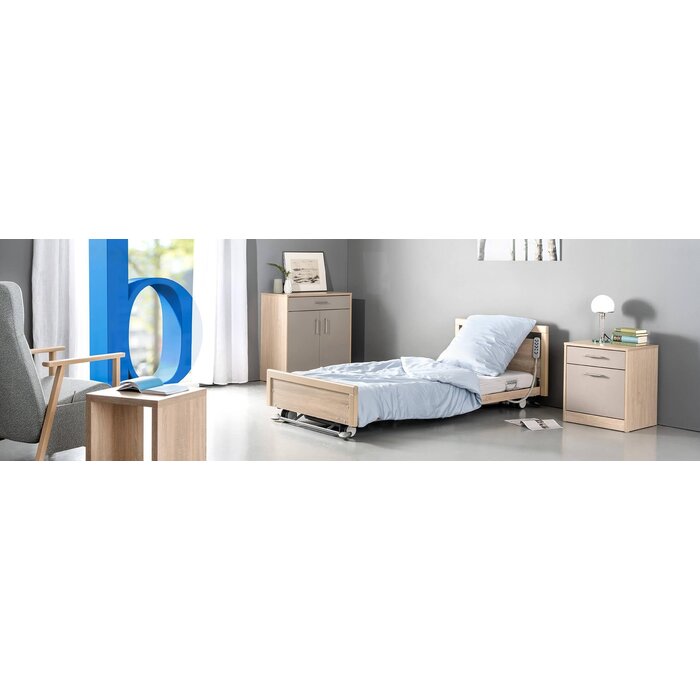

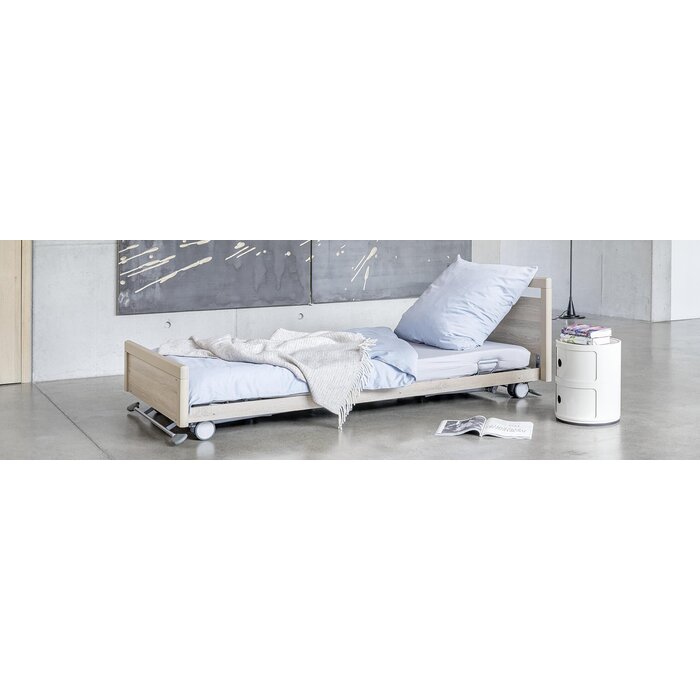

Floorline 15-80 bed, high panels 51F, wooden slatted base, 2 half telescopic side rails

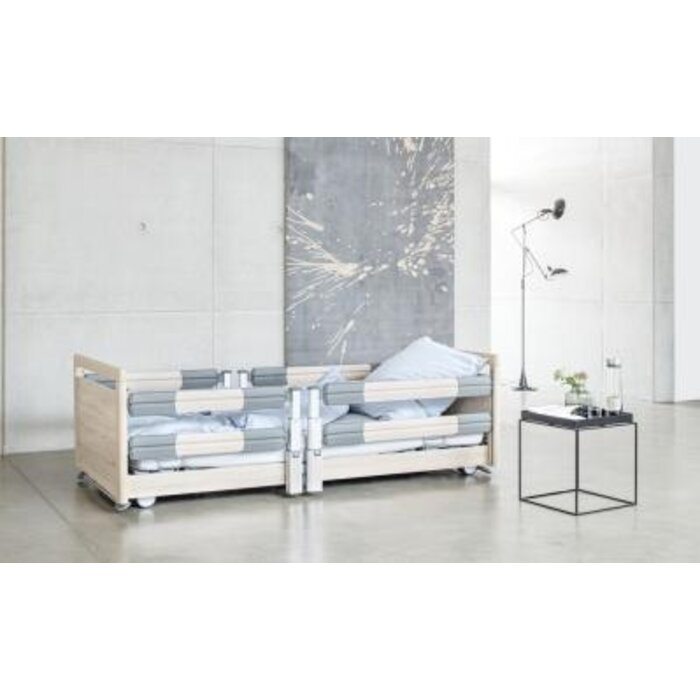

Floorline 15-80 bed, high panels 51F, wooden slatted base, 2 long telescopic side rails

Lowering and raising nursing beds as far as possible: With this combination, the bock floorline® sets new standards in the field of prophylaxis against the consequences of falls and easing the workload in daily care.

For patient:

• no restriction of freedom
• increased self-determination
• safe, dignified sleep in bed
• significantly reduced risk of fall injuries at the lowest height of 15 cm
• lie more comfortably and ergonomically
• activation and maintenance of mobility

For caregivers :

• physical relief through back-friendly, kinesthetic work at an ideal height
• psychological relief through reduction of restrictive measures
• more time for care thanks to the extensive standard equipment
• tool-free, integrated bed and side rail extension for quick and individual adjustment to the resident's body size
• various lying surface settings as a mobilization aid

Basic equipment

• Height adjustment range from 15 - 80 cm
• Integrated bed and side rail extension up to 210 and 220 cm, no tools required
• Wooden slats with section reinforcement
• Comfortable seating position, Trendelenburg and Anti-Trendelenburg
• Ergonomic backrest and mattress compensation for the highest comfort in any lying or sitting position
• Manual control with locking function
• Double wheels with indicator and central locking system on both sides

Specifications:

• Total product weight approx. 132 kg
• External dimensions: 103 x 219 cm
• Safe working load: 220 kg
• Max. Person weight: 185 kg
• Height adjustment: 15 – ~80 cm
• Lift space: 15 cm
• Height side rail system 3:
  39.5 cm with wooden slats, 35 cm with ripolux neo
• Lying surface: 90 x 200 cm
• Motor: Splashproof according to IPX4, high-quality spiral cable with strain relief and kink protection, SMPS plug transformer with extra low safety voltage for safety from the socket.
• 4-part lying surface:

• Long telescopic side rails
• Height adjustment from 15 to 80 cm
• Integrated bed extension, without tools, up to 210 or 220 cm
• 4-part bed surface with wooden slats and reinforced zones
• Ergonomically designed sliding backrest for a comfortable, physiologically correct sitting position and reduction of pressure peaks
• Clear remote control with locking function
• Large double castor wheels with 2+2 central locking and directional division
• High type 51F panel

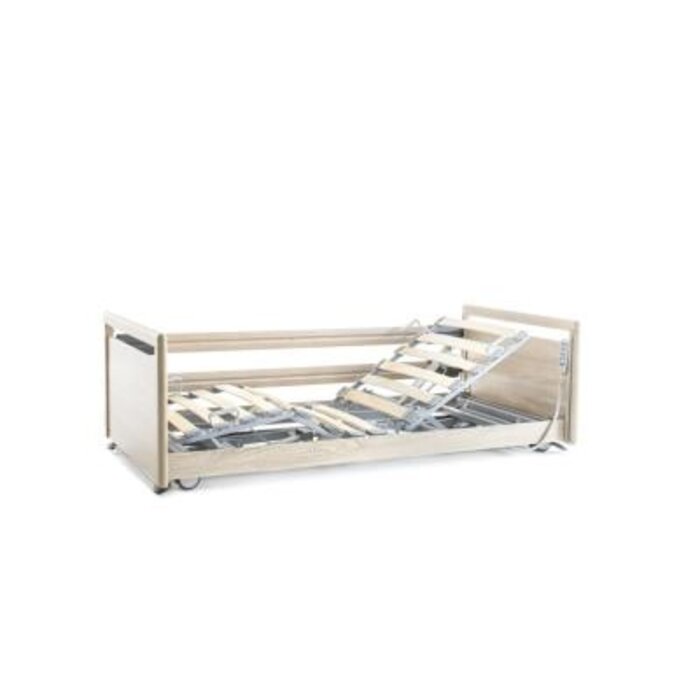

• Wooden slatted base
• Ground clearance: 15 cm
• Side rail height: 39.5 cm with wooden slats / 35 cm with ripolux® neo
• External dimensions: 103 x 219 cm
• Dimensions of lying surface: 90 x 200 cm
• Total weight: 132 kg
• Operating load: 220 kg
• Max. patient weight: 185 kg
• Drive: with splash-proof IPX4, special spiral cable with pull and twist protection and mains plug with fuse and emergency lowering function
