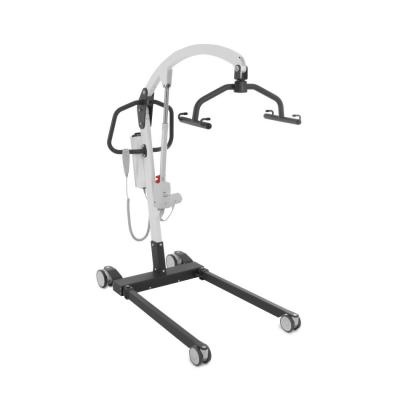

Passive lift Levitop, 4-point lifting yoke, 230 kg

• The Levitop Standard lift is an elegant and fast mobile lift designed to facilitate lifting and transporting indoors and changing the position of people with reduced mobility due to illness or disorder. With the Levitop Standard lift you can lift a patient from a rehabilitation bed, a bathtub, a shower tray or directly from the floor using a suitable suspension system.
• The high capacity battery allows you to perform approximately 20 complete lifting and lowering cycles on a single charge with a maximum load of 230 kg
• Features:
- The lift is equipped with a four-point flail (loop straps) as standard
- The bar rotates 360 degrees and can be locked in four positions (90 degrees)
- Wheels for maneuverability, even in small, narrow spaces
- Rear wheels with brake
- Patient can be lifted directly from the floor
- Remote control included in the set
- Leg width can be adjusted with the remote control
- Emergency lowering mechanism increases patient safety
• Advantages :
- Easy to use remote control
- Leg width adjustable with remote control
- Wide range of applications: transport, bath, toilet
- 360 degree swivel wheels with brake
• Technical data:
- Electrical adjustment of the distance between the legs
- Length: 130 cm
- Width: 67 cm
- Height: 135 cm
- Min. base width: 52/67 cm
- Max. base width: 103/118 cm
- Distance between legs: 52-103 cm
- Footrest height: 11.5 cm
- Wheel diameter (without brake / with brake): 10 / 12.5 cm
- Handle height: 95-127 cm
- Lifting range: 68-196 cm
- Weight: 66 kg
- Max. lifting capacity: 230 kg
- Lifting arm 360° rotatable
- Battery capacity: 2.9 Ah
- Max. noise level: 52 dB
- Emergency stop button / manual lowering mechanism
- Remote control with lifting, lowering and leg extension
