Description

for healthcare institutions and home care

The Raisa helps to move care recipients from a sitting to a
standing position and vice versa. The caregiver
can the care recipient in a safe and efficient manner
let stand, sit and move (transfer). By being
simplicity is the Raisa very easy to use. It is
a compact, manoeuvrable standing lift intended for home care

The Raisa can be used for example for the following
transfers.
• To and from chair/wheelchair.
• To and from the toilet
• To and from a bed/stretcher.
• To and from shower/bath toilet chair.

The Raisa is less suitable for care recipients with very
little muscle function in shoulder, girdle or legs and not
suitable for care recipients with a low level of consciousness.
If in doubt, contact your healthcare management.
It has a fast and robust lifting motor and can therefore
bring a person of 160kg to a safe stand. The legs
of the base are infinitely adjustable in width for
better positioning. The knee supports adjust themselves
on the position of the shin and knees

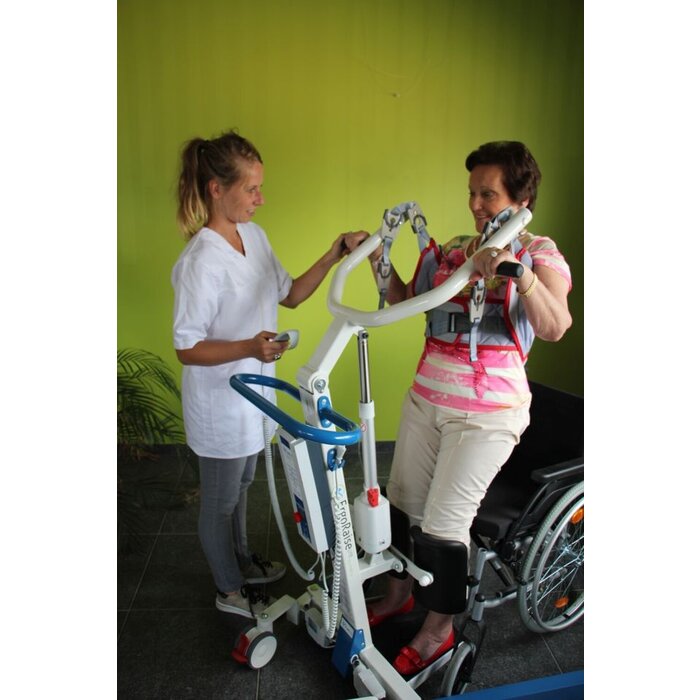

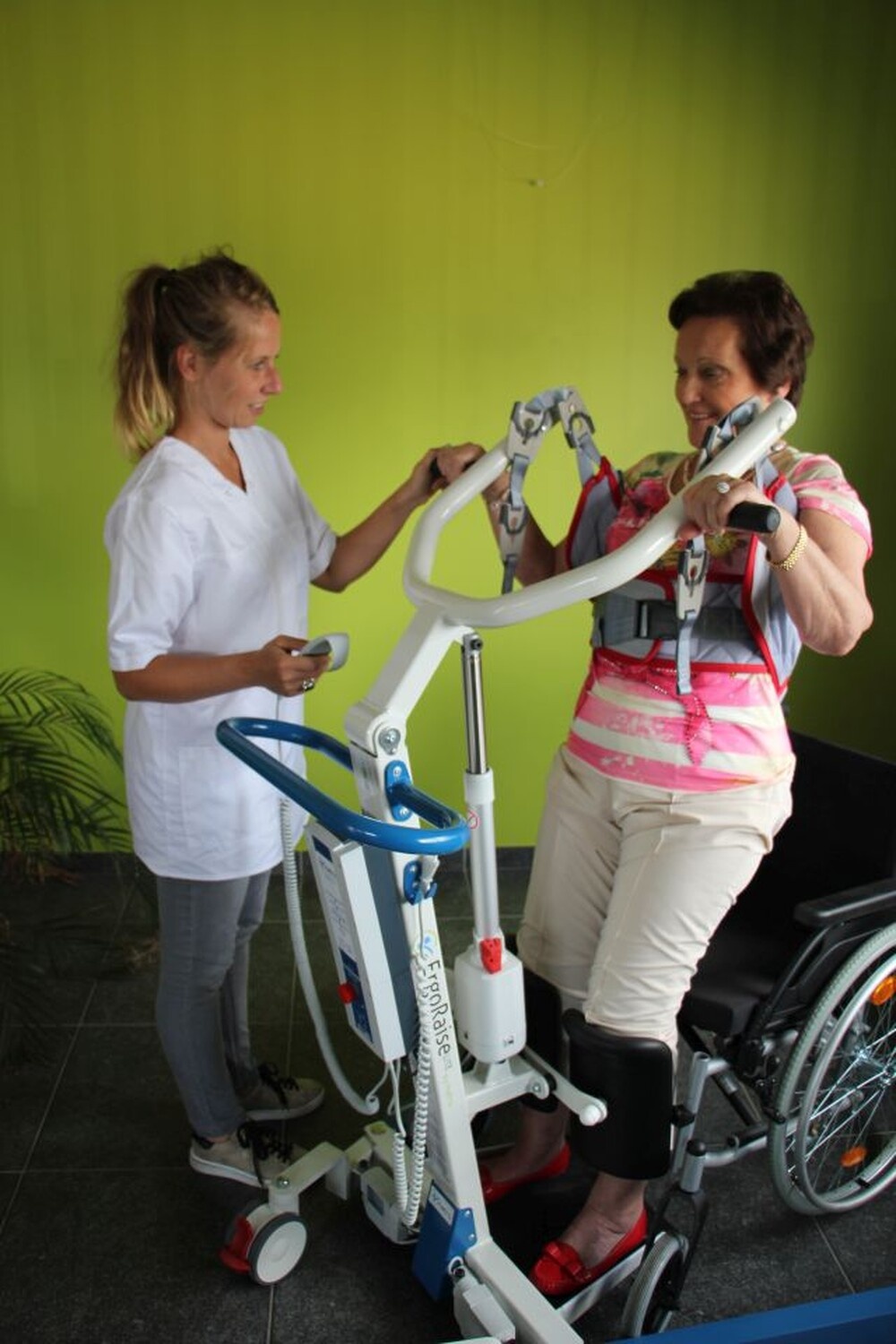

Raisa's working method

The caregiver who comes to the care recipient's home drives the Raisa, after which the care recipient places their feet on the footboard. The caregiver places a Lowzone lifting strap or lifting vest around the care recipient and attaches it to the Raisa. The care recipient then places their hands on the handles and rises under their own power with the support of the Raisa Basic. When the care recipient is fully standing, the caregiver releases the button on the hand control.

The assets of United Care

+ Designed with ergonomic working in mind for the healthcare provider

+ Developed to provide maximum comfort to the patient or resident

+ Multiple handles for patient/resident comfort and safety

+ Extremely manoeuvrable thanks to short legs

+ User-friendly operation

+ Smooth running wheels with kick brake

+ Equipped with emergency stop

+ Electrical opening and closing of chassis

+ Proven technology and proven reliability of the Linak motor and control unit

+ Very strong and durable, partly due to self-lubricating ball bearings on hinged parts

+ Footboard with anti-slip

+ Flexible individual shin supports

+ Low operating costs

+ Lifting straps for various applications, with different attachment systems and sizes

"With every aid, the mobility of the care recipient is central. Being able to move as naturally as possible is the starting point. That is why we offer aids that both support what people can still do themselves and take over what they can no longer do themselves."

Features & Specifications

+ Max. load capacity: 160 kg

+ Weight: 49 kg

+ JumboCare digital control box: data storage, data reading, cycle counter, service indicator, ...

+ Leg height: 11.5 cm

+ Incl. battery, rechargeable in socket

Options

+ Leg fixation strap

+ Footboard raiser

+ Customised lifting straps: the lifting straps with iQ-Clips are available as standard from stock, the S-Clips on order
