Art: R8407000|PRE
Shower stretcher - Various models
Not satisfied, money back
Higly recommanded afterservice
Free shipping and return from €60
Ordered before 3 pm, delivered tomorrow
30 days to change your mind
Pay later with Klarna
Description
Function
Adjustability: Height adjustable Read moreRead less
There are 2 models, 1 model with fixed height (in 140 and 180 cm length) and 1 model with electrically adjustable height (in 140 and 180 cm length):

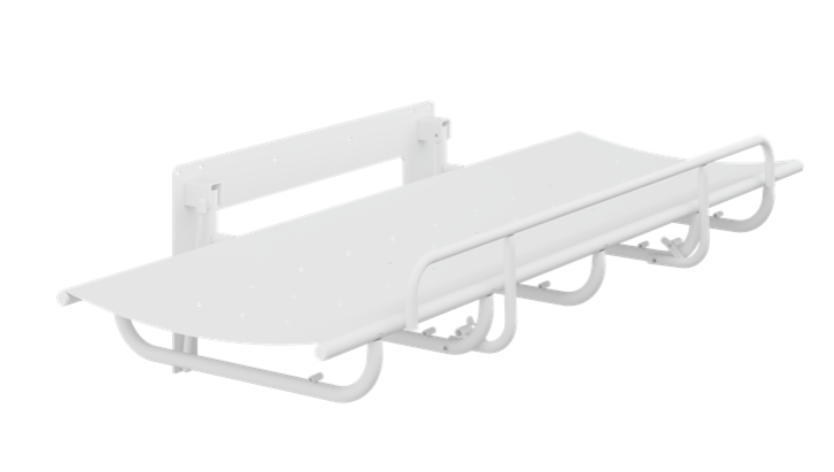

Model 1 with Fixed height:
- shower stretcher, fixed height.
- Foldable. Incl. safety grille.
- External dimensions 747 mm x 1800 mm.
- Materials: Rilsan coated steel and PVC coated canvas (phthalate free).
- Excl. mounting material
This product is intended for washing a person who cannot stand or sit by himself. The person lies horizontally on the table.
The expected lifespan of the shower table is 10 years when used in an institution, provided that maintenance is carried out as described in the user and maintenance manual
The expected lifespan of the shower table is 10 years when used in an institution, provided that maintenance is carried out as described in the user and maintenance manual
The table is made of practical and durable PVC fabric that is phthalate-free. The frame is powder-coated steel.
Function
The integrated gas cylinders allow the table to be folded away when not in use to maximise space in front of the unit.
Splash curtain (optional) for the shower stretcher protects the caregiver from splashes.
Splash curtain (optional) for the shower stretcher protects the caregiver from splashes.
Maximum user weight (MUM): 150 kg.
When the table is loaded with 150 kg, each mounting bolt supports 46 kg.
This product has been statically tested with a load of 225 kg, as the ISO 17966 standard requires testing with a safety factor of 1.5.
When the table is loaded with 150 kg, each mounting bolt supports 46 kg.
This product has been statically tested with a load of 225 kg, as the ISO 17966 standard requires testing with a safety factor of 1.5.

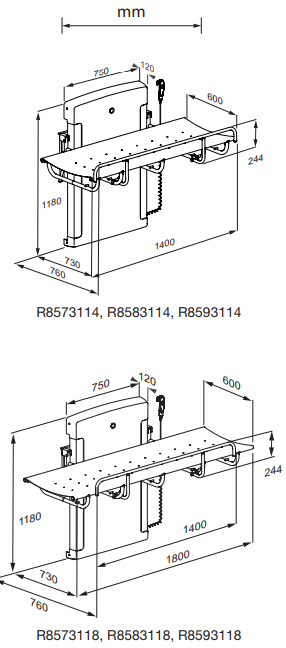

Dimensional drawing, mm
Adjustability: Fixed mounting
Weight: 28.06 kg

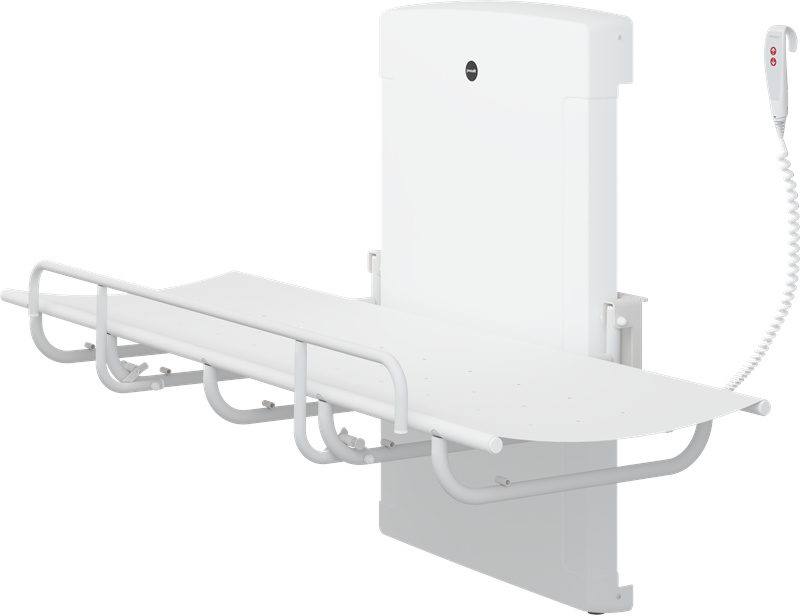

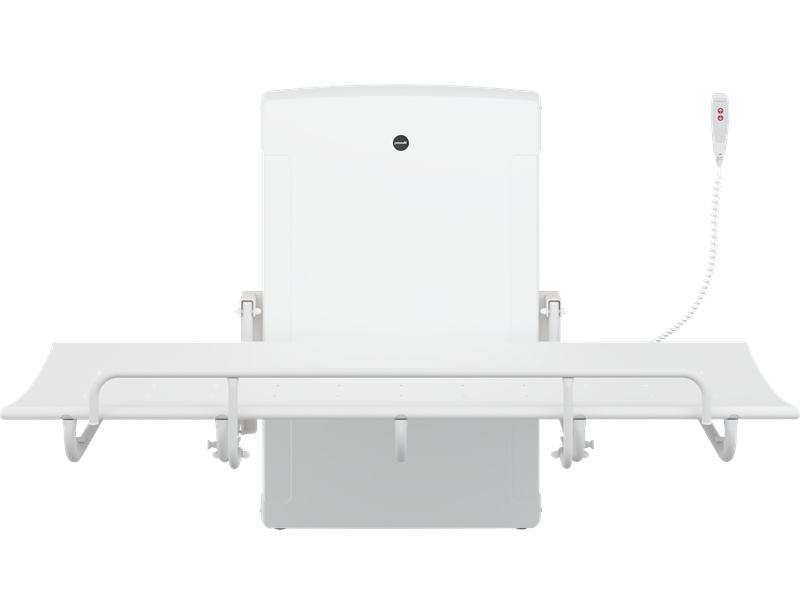

Model 2 with electrically adjustable height:
- shower stretcher, electric, adjustable in height 400 mm; from 480 mm-880 mm, with remote control on cable
- Foldable. Incl. safety grille.
- External dimensions 760 mm x 1800 mm.
- Materials: Rilsan coated steel and PVC coated canvas (phthalate free).
- Excl. mounting material
This product is intended for washing a person who cannot stand or sit by himself. The person lies horizontally on the table.
The expected lifespan of the shower table is 10 years when used in an institution, provided that maintenance is carried out as described in the user and maintenance manual
The expected lifespan of the shower table is 10 years when used in an institution, provided that maintenance is carried out as described in the user and maintenance manual
The table is made of practical and durable PVC canvas that is phthalate-free. The frame is powder-coated steel. Material: steel, PVC.
Ergonomics
Caregivers can easily adjust the height of the table to ensure the correct working position. This ensures safe showering and changing for the user and minimises the risk of back injuries for the caregiver.
Function
Electric remote control on cable (wired) – the red buttons clearly indicate "up" and "down". The remote control on cable is supplied with a holder for mounting on the wall.
The integrated gas cylinders allow the table to be folded away when not in use to maximize space in front of the unit.
Splash curtain (optional) for the shower stretcher protects the caregiver from splashes.
The integrated gas cylinders allow the table to be folded away when not in use to maximize space in front of the unit.
Splash curtain (optional) for the shower stretcher protects the caregiver from splashes.
Maximum user weight (MUM): 200 kg.
When the table is loaded with 200 kg, each mounting bolt supports 27 kg.
This product has been statically tested with a load of 375 kg, as the IEC 60601-1 standard requires testing with a safety factor of 2.5.
When the table is loaded with 200 kg, each mounting bolt supports 27 kg.
This product has been statically tested with a load of 375 kg, as the IEC 60601-1 standard requires testing with a safety factor of 2.5.
Dimensional drawing, mm
Adjustability: Height adjustable
Adjustment height: 400 mm
Mains connection (V): 230 V
Upward speed
11 mm/s
Reduce speed
9 mm/s
Noise level
50 dB
Weight
45.92 kg
Please note: these products have a production period of at least 2-3 weeks.
