Tango 700 manual

The VELA Tango 700/700E chairs are the latest models of the popular VELA chair.

They are chairs that offer independence at home and at work in a user-friendly design.
By sitting in a VELA chair, you can perform your usual standing activities safely and comfortably without wasting your energy.
All this thanks to a safe handbrake, easy-rolling wheels, and stable seating comfort.

The VELA Tango 700/700E chairs are the latest models of the popular VELA trippel chair. The Tango 700 replaces the Tango 100EF, 200EF, 500E and 510E.
The frame has been renewed, made more durable and now has a more robust and dynamic look.

The new frame offers more space to trip and is more agile.
The centralbrake is positioned further forward and is also equipped with an integrated foot brake for attendants.

You can put together the chair yourself according to your needs and wishes: different seats and backrests are possible on the new frame.
As with previous models, the new model is also available in different height adjustments .

New electrical functions are possible, such as seat and/or back inclination and the rise and go function.
This last function guides you when standing up and sitting down .

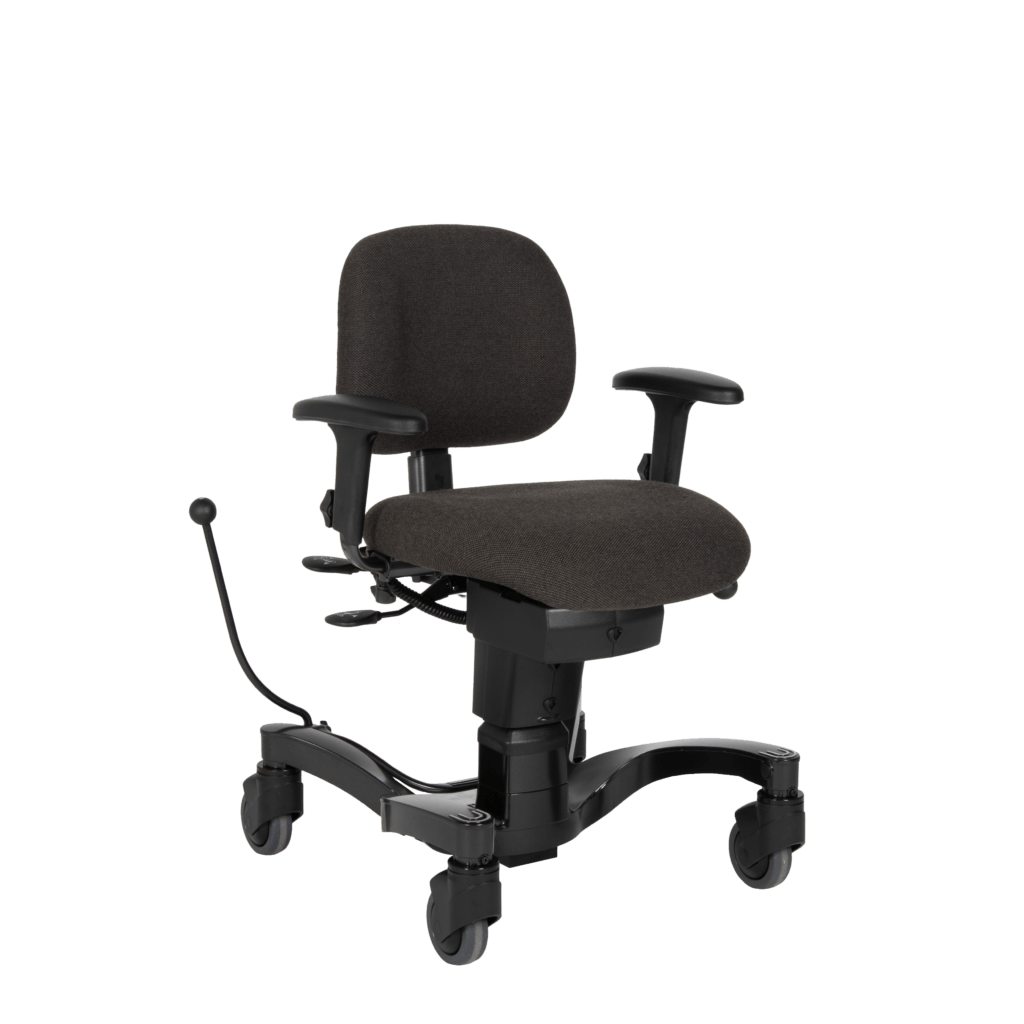

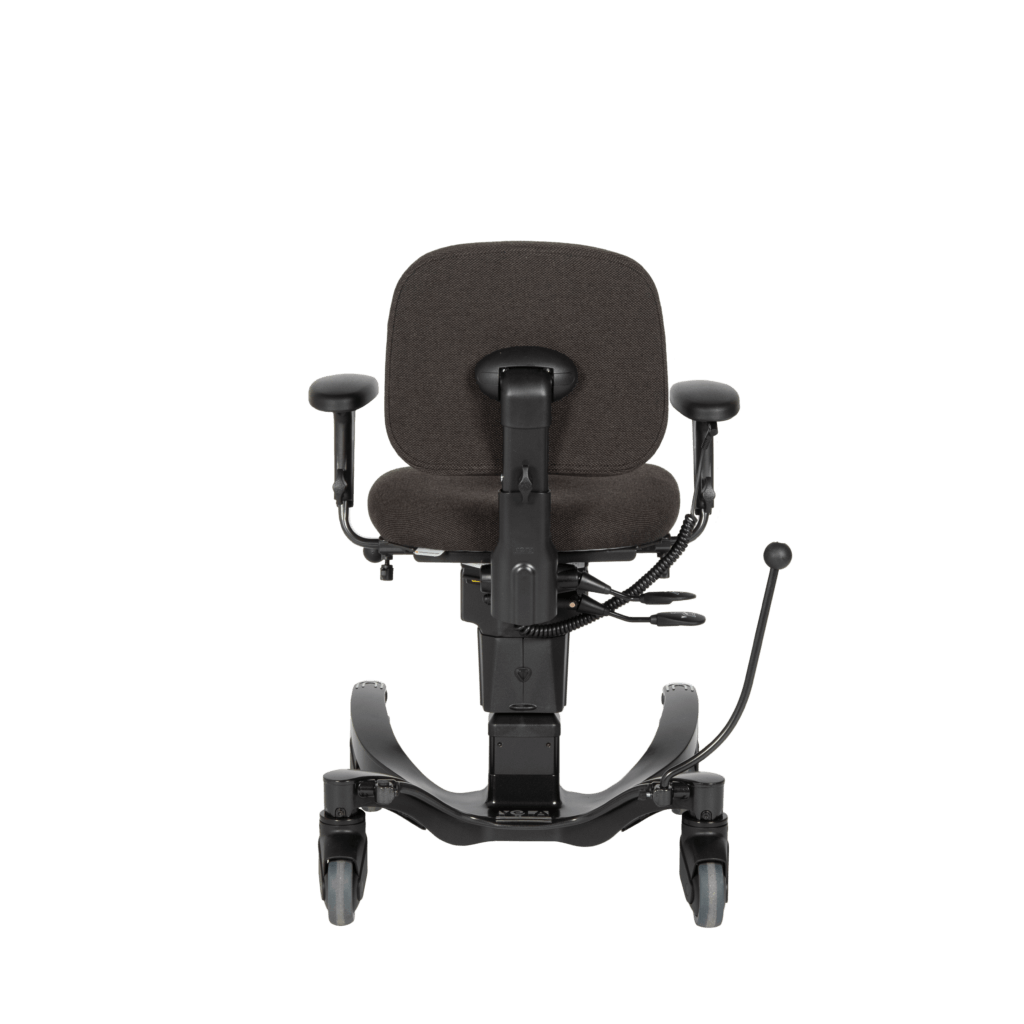

TANGO 700 (manual):

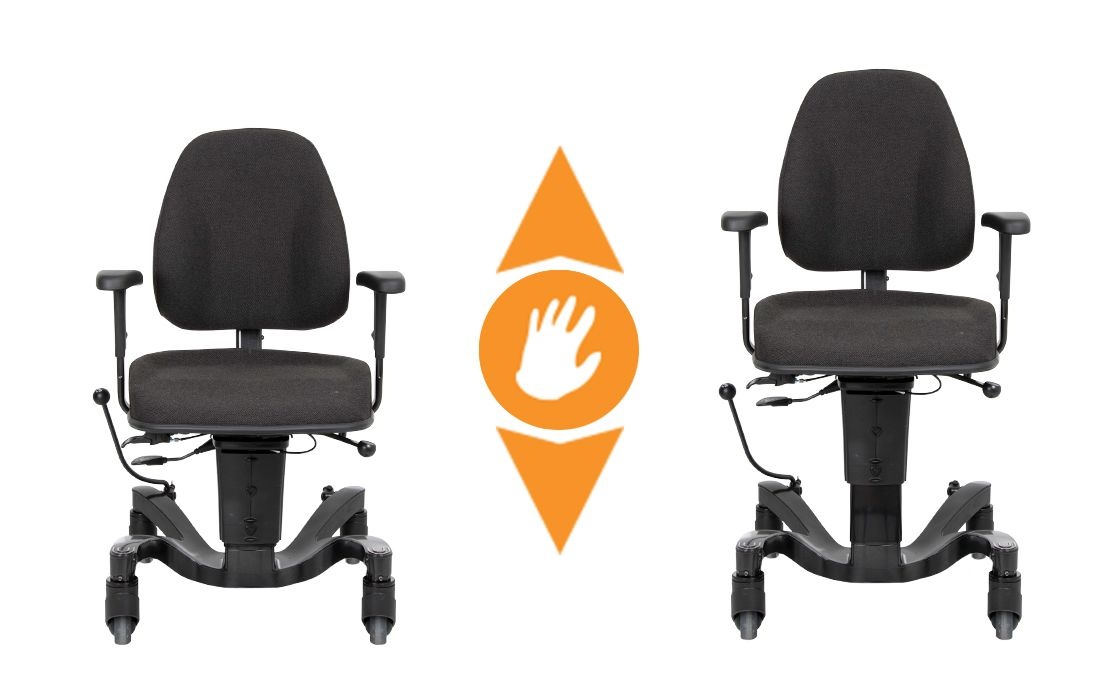

The VELA Tango 700E is equipped with an electric lift system that moves up and down at the touch of a button. This allows you to reach items on the top shelf or low in the cabinet.
The electric lift can also help you get out of the chair . If you have enough balance and strength in your legs to use a manual height adjustment, you can choose a VELA Tango 700.
Thanks to the soft and largewheels, it is easy to movethe chair safely and smoothly , even on tiles and uneven floors . In addition, the chair comes in different seat heights , so that it fits your size perfectly.
An easily accessible handbrake provides safety when performing daily activities, so you don't have to worry about the chair sliding out from under you.

Technical info standard configuration: Available from stock!

• Manually height adjustable
• Frame height 38 - 53 cm
• Active seat M : 44 x 44 cm, 10° forward and 15° backward inclination, 90° seat rotation to the left and right
• Active backrest M : 38 x 30 cm, 4° forward and 22° backward tiltable, 10 cm height adjustable
• Armrests: 9 x 25 cm with PU upholstery, height adjustable from 14 to 25 cm, adjustable distance from 38.5 to 52.5 cm
• Chair weight: 27 kg
• Maximum load: 130 kg
• Wheels: Ø 10 cm
• Floor base: 55 x 55 cm
• Control lever height right
• Standard brake lever 39cm - right
• Central brake lever on the rear wheels.
• Color and material:
  • Mainline Anthracite
  • Skai Black

The above configuration is available from stock. (Delivery time 1-2 working days)

Does the standard VELA TANGO 700 not meet your needs?
Then put together a Vela 700 yourself . The price consists of: price basic frame+ additional price chosen options . (Only on order, delivery time 2-4 weeks)

BASIC FRAME:

Brake lever:

• Right (standard configuration)
• Left

Frame height (min-max):

The minimum height approaches A - 6 cm

Height adjustment 10 cm:

• 32 - 42 cm
• 34 - 44 cm
• 36 - 46 cm

Height adjustment 15 cm

• 37 - 52 cm
• 38 - 53 cm (standard configuration)
• 40 - 55 cm
• 42 - 57 cm

Height adjustment 20 cm:

• 43 - 63 cm
• 45 - 65 cm
• 47 - 67 cm
• 49 - 69 cm

Seat (width x depth):
Width approaches B, depth approaches C.
The inclination of the backrest can be used to adjust the seat depth

The Active seat is the standard seat with a relatively flat shape that offers sufficient comfort and support to fairly active users.

• S - 40 x 40 cm
• M - 44 x 44 cm (standard configuration)
• L - 47 x 47 cm
• XL - 49 x 49 cm
• D - 40 x 49 cm

The Contour seat features higher lateral supports for a more stable seating position. This seat also features memory foam.

• S - 40 x 40 cm
• M - 44 x 44 cm
• L - 47 x 47 cm
• XL - 49 x 49 cm

The Coxit seat is an arthrodesis seat with a split front, the 2 parts of which are separately adjustable. This is suitable for people with an amputation or leg prosthesis and/or limited movement of the hip or knee.

• S - 40 x 47 cm
• L - 47 x 47 cm

Backrest:
(wxh) - Low backrest = more freedom of movement, high backrest = more support.

The Active backrest is the standardbackrest with a fairly flat shape. The choice of height depends on the level of comfort and support required.

• S - 38 x 22 cm
• M - 38 x 30 cm (standard configuration)
• L - 40 x 40 cm
• XL - 40 x 48 cm

The Contour backrest features integrated, slightly curved lateral supports for added support and comfort.

• M - 36 x 38 cm
• L - 39 x 43 cm
• XL - 40 x 48 cm

The Support backrest has more pronounced lateralsupports for people with reduced trunk stability, for example.

• L - 43 x 46 cm
• LO - 43 x 46 cm (lumbar inflatable)

The ALB backrest consists of 2 parts for people who need more support and comfort. The lumbar part is easily adjustable (left or right) for optimal, varied support of the back and pelvic area.

• S - 39 x 39 cm
• M - 39 x 49 cm
• L - 39 x 51 cm

All backrests are adjustable in height and inclination.

Tips for choosing the right size

• The choice of backrest size depends on the level of support required.
• For more freedom of movement, a lower backrest can be chosen; if more support is required, it is best to choose a higher backrest and/or the Contour/Support backrest.

Armrests:

• 9 x 25 cm (standard configuration)
• 9 x 30 cm

• Color range (included as standard)

  • Main Line Plus (fabric): Main Line Plus is a popular quality fabric from Camira in 67% wool, 20% flame-retardant viscose and 13% viscose.
  • It has very good wear resistance, high comfort and is easy to clean. Wear resistance ≥50,000 Martindale.
  • The colours below are standard colours. However, we can supply all colours listed below. An additional charge and longer delivery may be incurred by choosing a different covering than standard.
  • Clean with a clean, damp cloth, possibly with the addition of a neutral soap.
    • Available in:
      • black (1)
      • anthracite (2)
      • dark gray (6)
      • light gray (5)
      • burgundy (4)
      • royal blue (3)



  • Skai (artificial leather): Skai is a durable artificial leather made of soft PVC (front) and tricot PES (back).
  • Abrasion resistance 50,000 Martindale.
  • The corresponding colours are standard colours. However, we can supply all colours listed there. An additional charge and longer delivery may be calculated by choosing a different covering than standard.
  • Clean with a clean, damp cloth, possibly with a neutral soap. You can also use disinfectants and alcohol.
    • available in:
      • black (16)
      • light gray (15)



  Color range (additional cost)

  • Soft fabric comfort
    • Available in:
      • black (7)
      • dark gray (8)
      • light gray (11)
      • red (10)
      • cobalt blue (12)
      • royal blue (9)



  • Non-slip synthetic leather compound
    • Available in:
      • black (13)
      • dark gray (14)

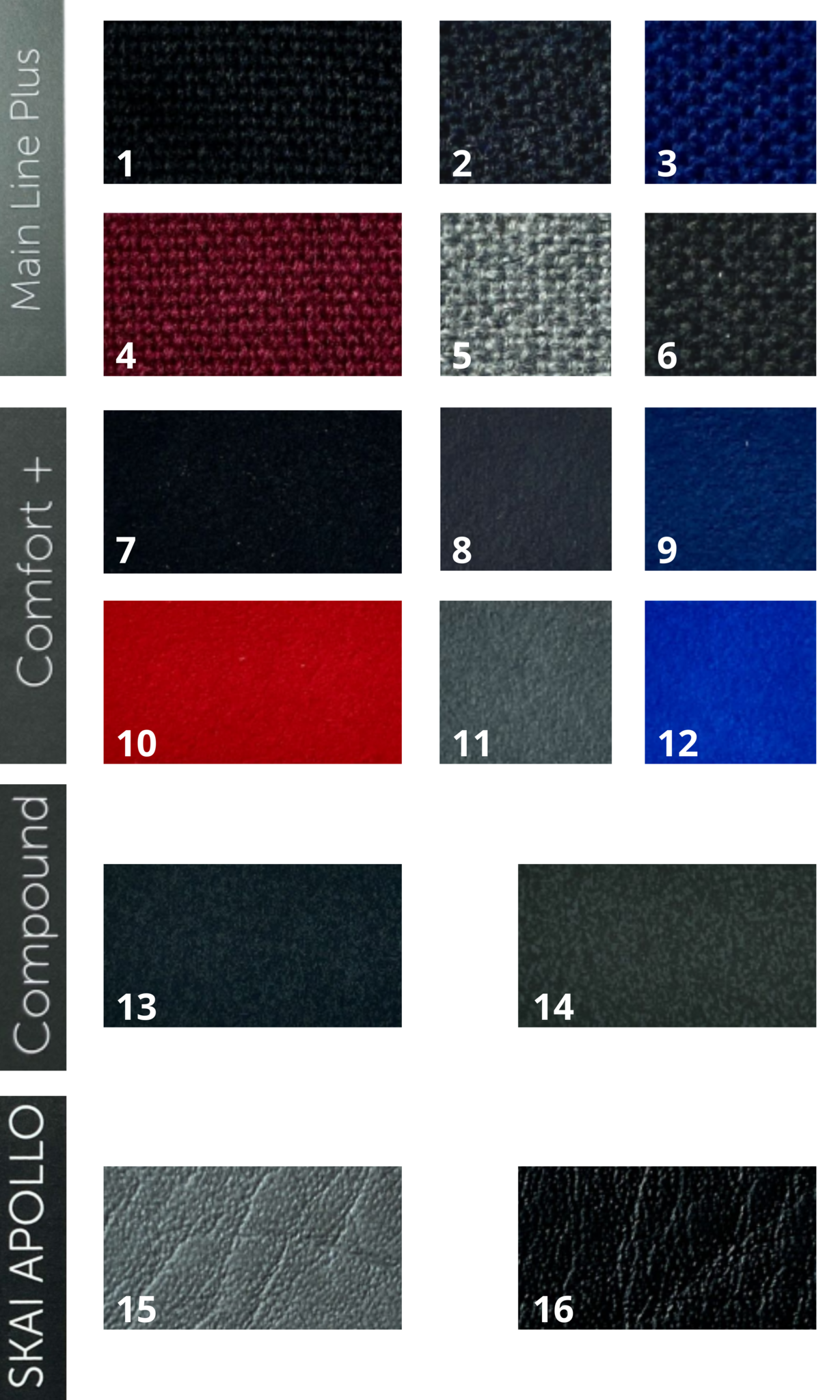

  (View the color chart in large size by clicking on the map)



Brake/frame options:

• Brake lever right (standard configuration)
• Brake lever left
• Extendable brake lever
• Brake lever T-handle
• Anti-tilt bar
• Brake on 4 wheels

Head and footrests:

• Folding footrest
• Folding footrest (possible from a minimum frame height of 36cm)

The above options are available in the drop down menu.

• Other options available on request ( view them here ):
  • Headrests
  • Seat belts & harnesses
  • Body supports
  • Seat protection & incontinence covers

Note: Since this product is always custom-made and specifically assembled for you by the manufacturer according to the color, fabric and options you choose, this product falls outside the return policy of 30 days reflection period. Please contact us if you have any doubts about the options to choose, because it is not possible to return this product.
